BMSocket Tester + BM2Timer
Product Code: socket_tester
Units in Stock: 22

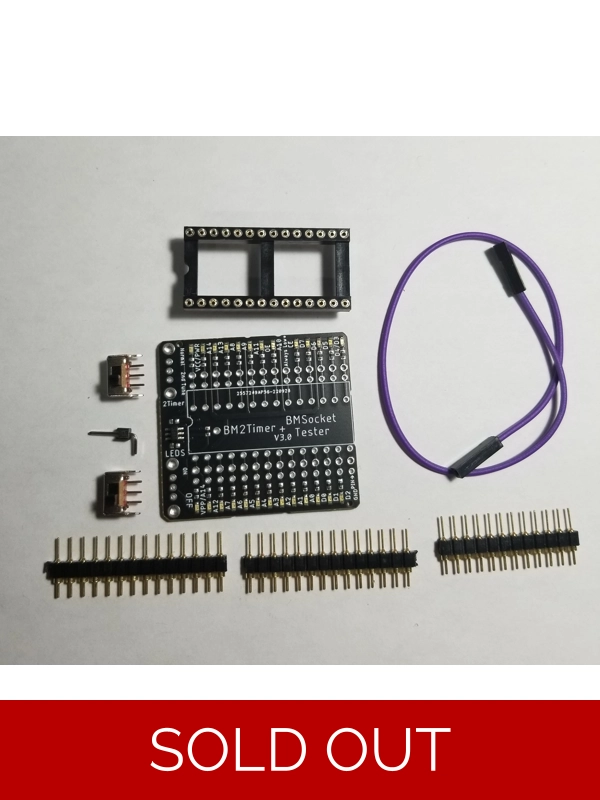

BMSocket Tester + BM2Timer
**THIS ITEM COME UNASSEMBLED**
**REQUIRE SOLDERING**
WHAT IS THE BMSocket Tester
This little gem plugs into your 28-pin socket that normally takes a 27C256 chip.
WHAT IS THE BMSocket Tester
This little gem plugs into your 28-pin socket that normally takes a 27C256 chip.
This is used to known if any pins of the 28-pin socket are defect on the ecu.
The BMSocket Tester can also be used permanently, that mean you can use this tester when driving arround with the car. The BMSocket Tester also have a 28-pin socket placed on top of it to allow running with your chips (or emulator) with it!
You can choose with a simple Switch if the leds on the BMSocket Tester are On or Off.
WHAT IS THE BM2Timer
The BM2Timer part is used to put two tuning files of 32kb on a 64kb chip (XXX512 chip) and switch between one or the other tune file.
The BM2Timer part is used to put two tuning files of 32kb on a 64kb chip (XXX512 chip) and switch between one or the other tune file.
The BM2Timer has 2 methods for changing between tunes:
-Integrated Switch (method which requires no additional equipment)
-External Switch (method which requires a switch/push button *not included*)
Blue 2Pin Jumper Method
With this Method you simply need to move the 2Timer Switch to switch between the two tunes.
for tune #2 (use 0000 to 7FFF chip region)
for tune #1 (use 8000 to FFFF chip region)
External Switch Method
It can has a single wire lead coming off of it using the pin underneath
With this Method you simply need to move the 2Timer Switch to switch between the two tunes.
for tune #2 (use 0000 to 7FFF chip region)
for tune #1 (use 8000 to FFFF chip region)
External Switch Method
It can has a single wire lead coming off of it using the pin underneath
When sorting this wire to ground you will run on the tune #2.
If this wire is in open circuit (not connect to ground or any source), it will be on tune #1.
Simple Connection 'Diagram' when using External Switch:
Pin underneath --> Wire --> Switch (one end)
Switch (other end) --> Ground
The switch must be a toggle switch (SPST or SPDT) if you want to switch from one tune to another without holding the button, otherwise if you want to change tune only when the button is held, use a momentary switch.
The switch must be a toggle switch (SPST or SPDT) if you want to switch from one tune to another without holding the button, otherwise if you want to change tune only when the button is held, use a momentary switch.
COMPATIBLE ECUS
- All Honda/Acura OBD1 ecus
- All 28-pin style EEPROM sockets of any devices!
COMPATIBLE CHIPS(for BM2Timer use)
- 27C512
- W27C512
- W27E512
- 27SF512 SST
- XXX512
This is the requirement if the model you use aren't listed above:
Any 28pin Chips that end by (or has) the '512' marking on them, that are '64kb X8' and that the Pin #1 represent 'A15' will works.
If it has the 512 marking (its also a 64kb X8 chip) but the pin #1 doesn't represent A15 it'll not be a compatible chip!
You can in fact use any other chips models that originally works in the OBD1 ecu if you don't want to neccessarly use the BM2Timer part of the adapter!
WHATS INCLUDED IN THE PACKAGE
- 1x BMSocket Tester Unit
- 1x 20CM Female to Female Jumper Wire
ADDRESSING INFORMATIONS(for BM2Timer use)
The first Tune are using chip addressing 8000-FFFF
The second Tune are using chip addressing 0000-7FFF
HOW TO BURN A CHIP FOR THE BM2Timer
With the software that goes with your burner, you will start by selecting your chip model.
1. Erase the chip (if it is blank avoid this step)
2. Open your Tune #2 file (yes #2)
3. Burn this file from 0000 to 7FFF
4. Then open your Tune #1
5. Burn this file from 8000 to FFFF
6. Now your chip is ready to be used, it includes your two files!
FOR MORE INFORMATIONS
Contact Bouletmarc
By Email OR On Facebook
Units in Stock: 22
Product Code: socket_tester
Brand: BMDevs
Product Condition: New
weight: 25.0g
